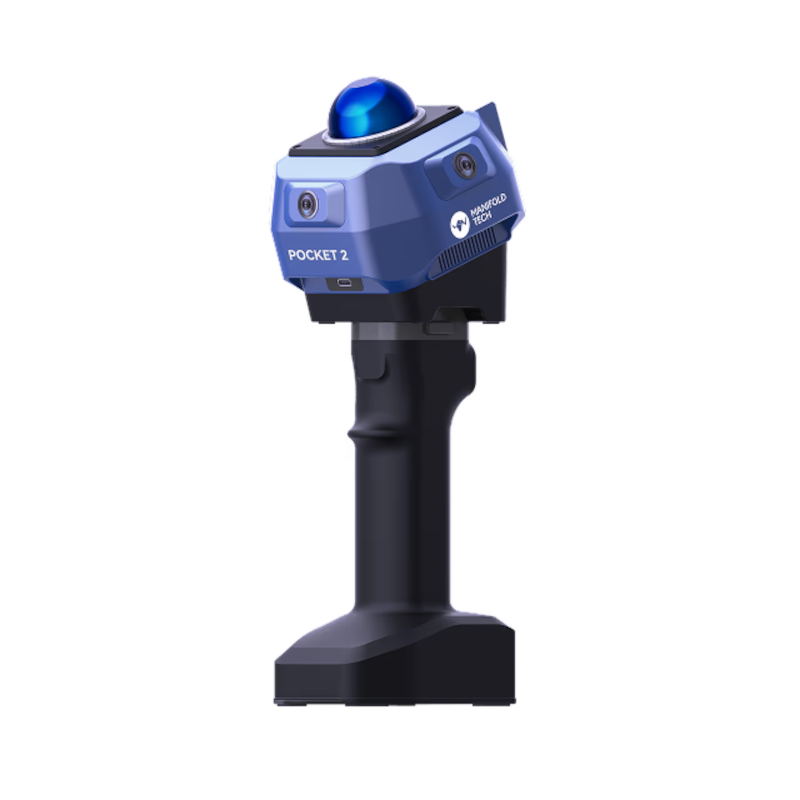

Manifold Pocket 2
Manifold POCKET 2
A Handheld Real-Time Spatial Scanning Productivity Tool
|
|

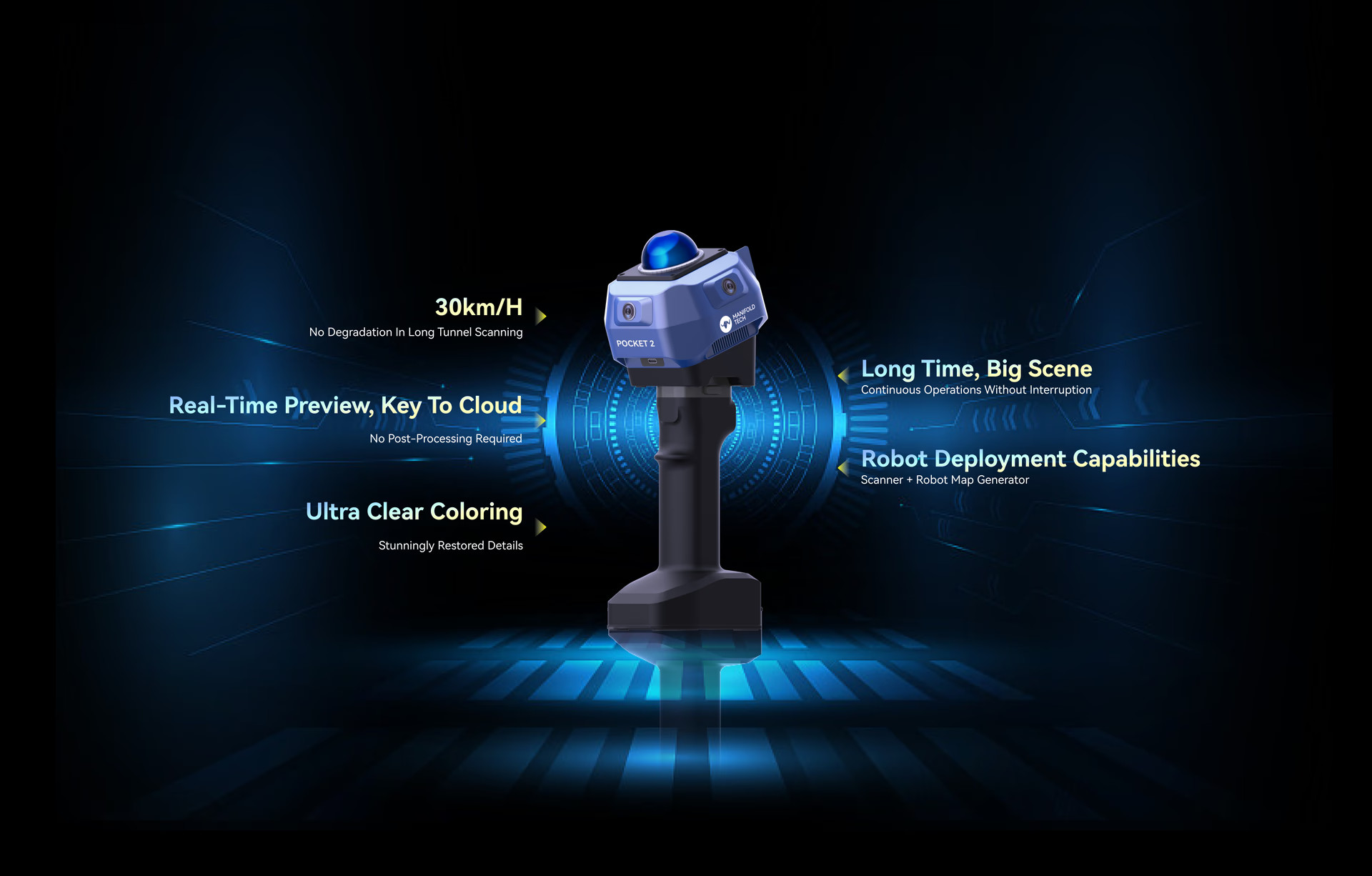

Core Functions Fully EvolvedMultimodal Sensor Fusion MindSLAM® Algorithm Driver |
High Speed, Stable Mining And Fine CarvingScanning At 30km/h Never Drifts Long Distance Continuous Operation 3 Cameras + LiDAR Hardware Synchronisation Trigger |
|
|
|

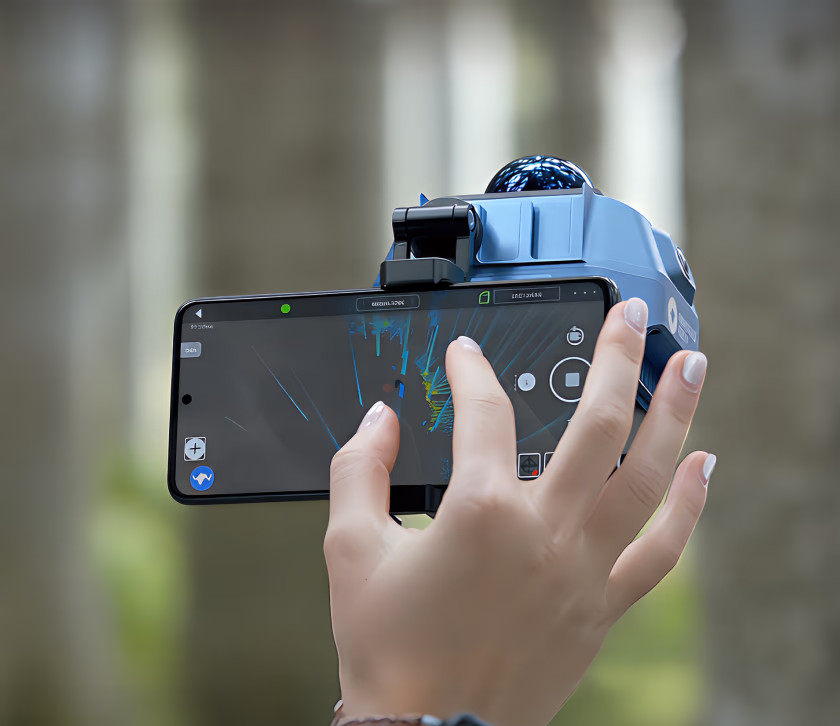

Live PreviewWhenever You Scan, You Will See |

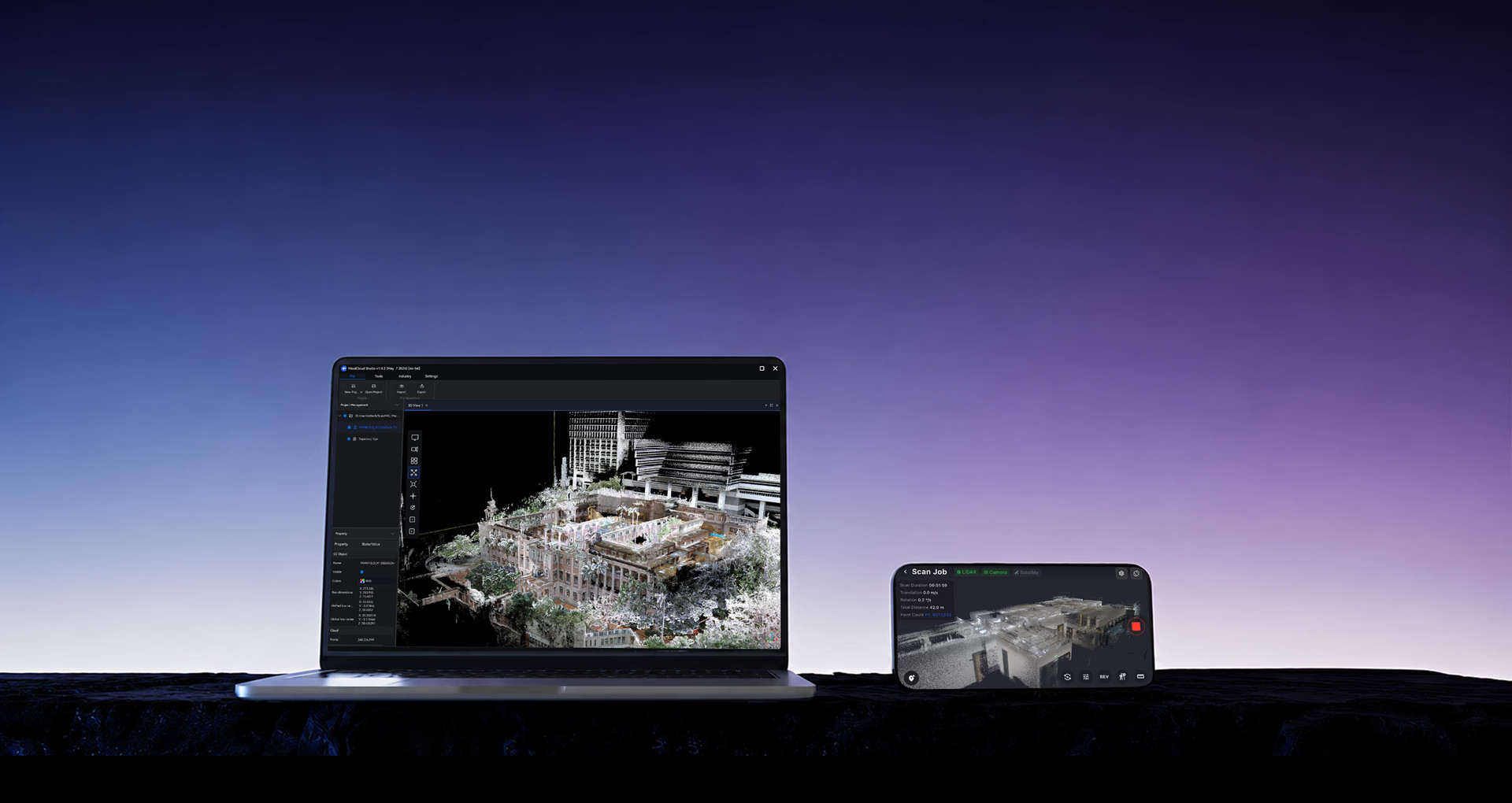

One-Click Cloud Migration And Multi-Device Collaboration
Seamless Interconnection Between Devices, APP And Cloud
Robot Deployment Capabilities
More Than Just A Standalone Scanning Tool
Technical Specifications
|
Item |
Specification |
|
Dimensions |
4.5 × 4.4 × 4.7 in (115 × 113 × 120 mm) |
|
Device Weight |
1.74 lb (790 g) |
|
Handle Battery Weight |
1.07 lb (485 g) |
|
Operating Temperature |
14°F to 104°F (-10°C to 40°C) |
|
Data Interface |
USB 3.0 |
|
Storage |
Built-in SSD, 256 GB |
|
Battery Capacity |
4000 mAh |
|
Battery Life (Single Battery) |
Up to 120 minutes |
|
Point Cloud Accuracy |
Better than 0.4 in (≤ 1 cm) |
|
Camera System |
3 × 2 MP Global Shutter RGB Cameras |
|
Laser Wavelength |
905 nm |
|
Laser Channels |
40 channels |
|
Point Density |
200,000 points/sec |
|
Measurement Range |
131 ft @ 10% reflectivity / 230 ft @ 80% reflectivity (40 m / 70 m) |
|
Global Positioning Accuracy |
Better than 2 in (≤ 5 cm), typically around 1.2 in (≈ 3 cm) |
|
MindCloud Software Suite |
|
